Real installs.Real hardware.
Everything shown here is from my own home installation or live projects. Hardware items are available to order pre-configured. Software projects are available as templates or custom builds.

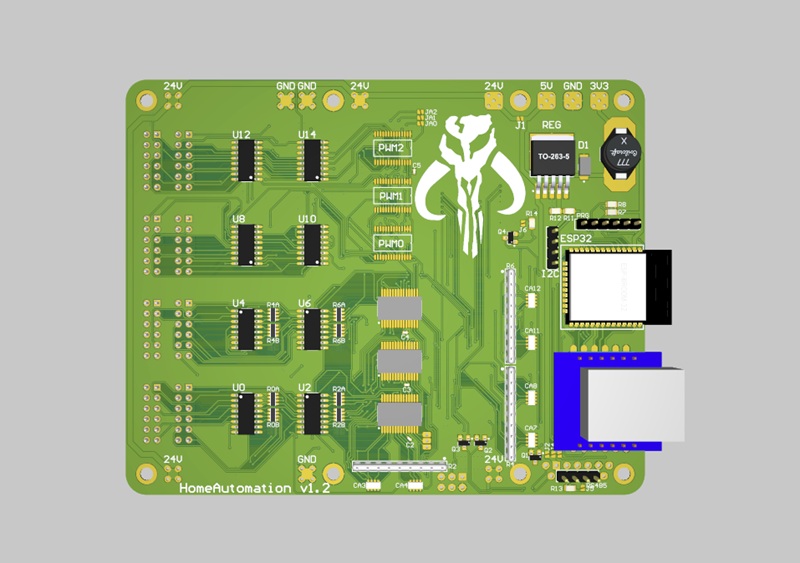

IoT Controller
IoT controller collects inputs from light switches and sends them to MQTT server. While at the same time it executes commands from MQTT server and sends them to relays. With IO adapter is really easy to connect wall switches to this controller. Uses W5500 lan module for a stable connection to MQTT server.

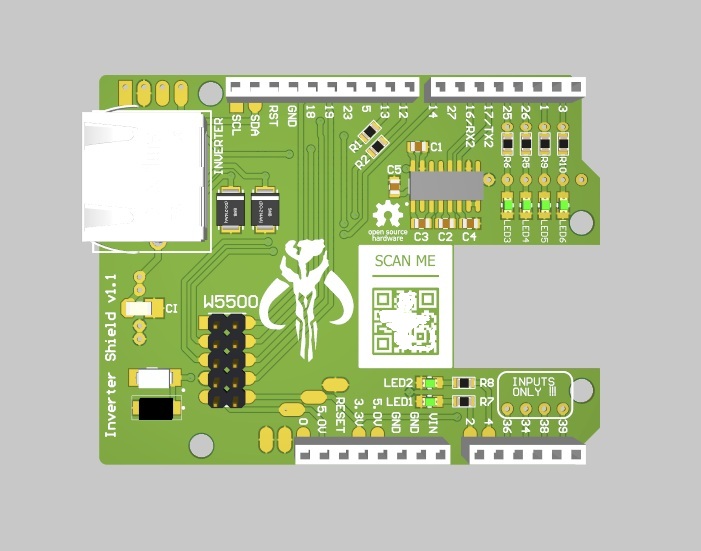

Inverter Shield
With the combination of standard Wemos D1 R32 arduino module this shield connects your inverter into your home automation system. This way all the parameters can be easily monitored and displayed anywhere. For a more stable connection there is an option of using W5500 LAN module instead of connection via Wifi.

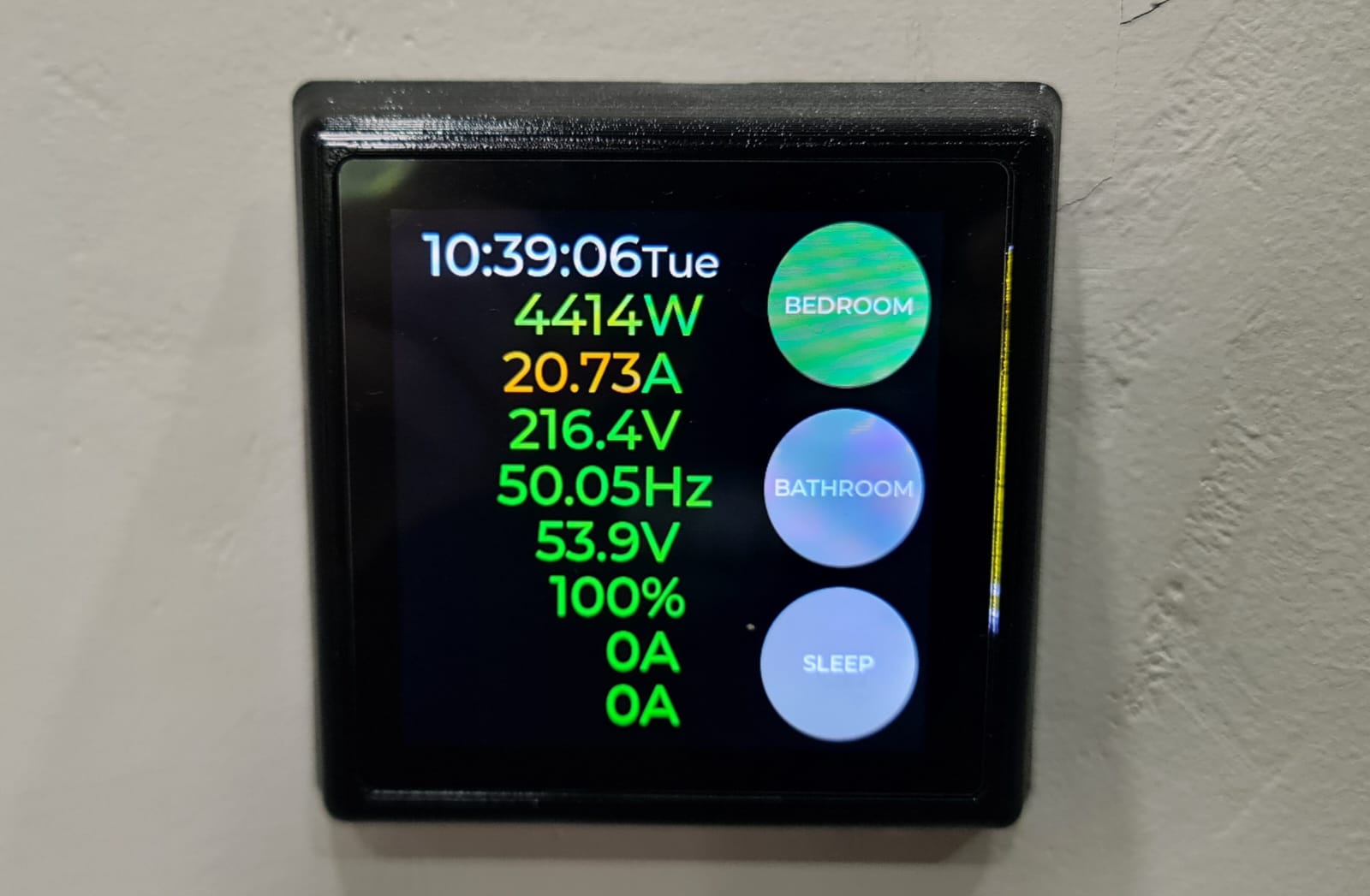

Smart Panel
ESP32-S3 based smart panel allows full customization of what information you want to view and what devices are to be controlled. Fully customizable to accomodate any wish.

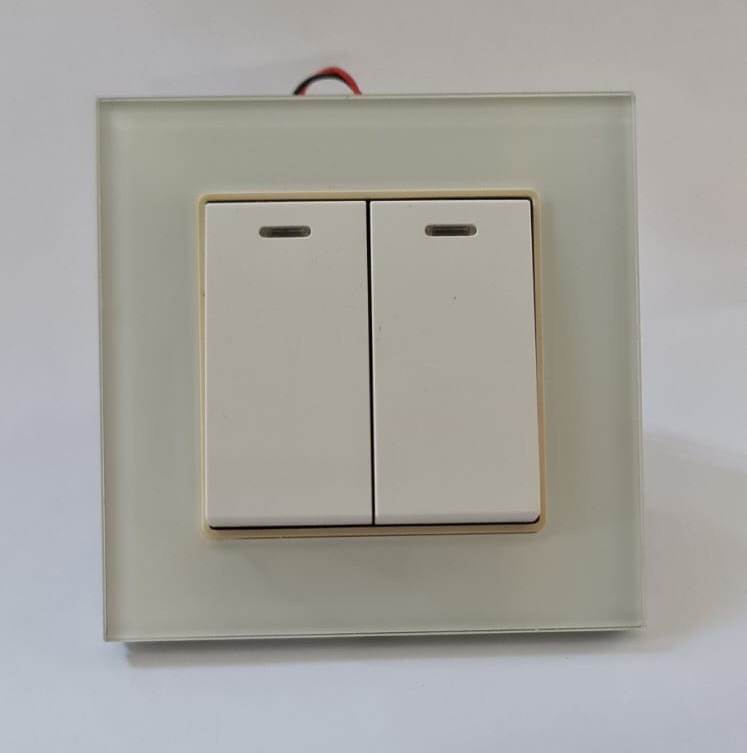

Push-Button Light Switches
Push-Button type switches only send signal when pressed. Ability to use single/double/long press in the house. Come with LED lights control for night time usage. They connect to the Electrical Panel via standard network cable. Network cable allows for easy upgrade later to a smart panel.
See something you want in your home?
All hardware ships pre-configured. Get in touch to discuss your setup.
